Power9 AC & DC EV Chargers
Different charging applications require different combinations of charging speed, electrical capacity and user access.
The Power9 range currently includes a dual-gun AC charging system for simultaneous charging and a connected 20/30 kW DC fast charger for faster-turnaround applications.
Power9 AC Type 2 Dual Gun EV Charger
11.5 kW × 2 | 23 kW Total System Output
Model: P9-AC22D
The Power9 AC Type 2 Dual Gun EV Charger combines two charging outputs in one floor-standing charging unit.
Each charging gun provides 11.5 kW output, allowing the system to provide 23 kW total output when both ports are operating simultaneously.
This makes it particularly relevant to locations where more than one EV may need access to charging during the same parking period.
| Key Specifications | Power9 AC Dual Gun Charger |
|---|---|
| Model | P9-AC22D |
| Charger Type | AC |
| Number of Guns | 2 |
| Output Per Gun | 11.5 kW |
| Total System Output | 23 kW |
| Output Voltage | 230 V AC |
| Connector | IEC 62196-2 Type 2 |
| Cable | 5 m standard / 7 m optional |
| Input | 230 V AC, single phase |
| Frequency | 50 / 60 Hz |
| Efficiency | >94% |
| Display | 4.3" TFT LCD colour |
| Network | 4G LTE / Wi-Fi / LAN |
| OCPP | 2.0.1 with 1.6J backward compatibility |
| Enclosure | IP54 |
| Impact Rating | IK08 |
| Mounting | Floor-standing |
| Dimensions | 400 × 250 × 1200 mm |
| Weight | 28 kg |
Charge Two Compatible EVs Simultaneously
One of the defining features of the P9-AC22D is its dual-gun configuration. Instead of allocating a separate charger cabinet to each parking position, the system provides two Type 2 charging outputs from one floor-standing unit. Each output is specified for 11.5 kW, enabling 23 kW combined simultaneous charging. This can be useful in charging environments where vehicles have relatively long parking durations but more than one user needs charger access.
Smart User Access
The charger specification supports several user-authentication methods: RFID, NFC, QR code, App-based authentication It can locally store multiple RFID credentials, helping support managed charging environments with multiple authorised users.
Connected Charging
The AC charger includes: OCPP 2.0.1, Backward OCPP 1.6J support, 4G LTE, Wi-Fi, LAN, Remote start/stop, OTA updates These capabilities enable the charger to communicate with compatible charging-management infrastructure.
Charging Information at a Glance
A built-in 4.3-inch colour display presents session and charging information. Depending on available data, the display can show: Power, Voltage, Current, Frequency, Energy consumed, Charging time, User information, Charger status Fault information
Dynamic Load Management
The AC charger specification includes dynamic load-management functionality. For sites with multiple electrical loads, controlled charging can be an important part of making better use of available electrical capacity. The final load-management architecture should always be designed according to the site’s actual electrical system.
Protection & Outdoor Installation
The unit uses an IP54-rated aluminium enclosure and includes multiple protection mechanisms.
Over-voltage protection
Under-voltage protection
Over-current protection
Over-temperature protection
Short-circuit protection
Earth-leakage protection
Type 2 surge protection
* An optional emergency-stop configuration is also listed.
Where Can the Power9 Dual Gun AC Charger Be Evaluated?
Workplaces
Longer employee parking periods can make AC charging practical.
Apartments & Residential Parking
The charger can be evaluated for planned shared charging environments where the electrical infrastructure and vehicle compatibility support it.
Commercial Properties
Two charging outputs can help provide charging access to more than one vehicle.
Destination Charging
Suitable charging locations may include places where vehicles remain parked for extended periods.

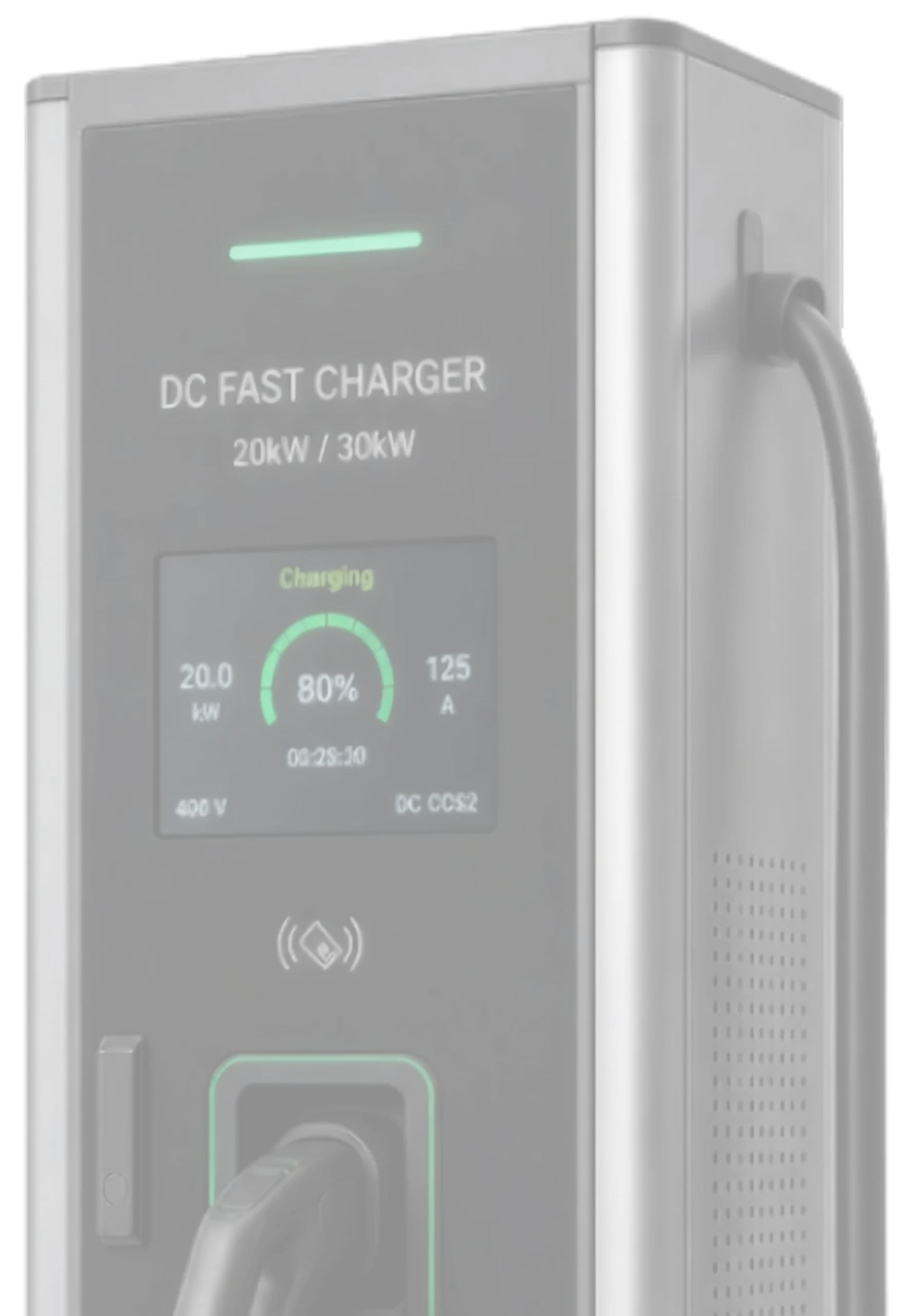

Power9 20/30 kW DC Fast Charger
Selectable 20 kW / 30 kW DC Charging
Model: P9-DC30S
The Power9 P9-DC30S is a floor-standing DC fast charger designed around selectable 20 kW or 30 kW output.
Its wide 200–1000 V DC output range, connected charging capabilities and integrated user interface make it relevant to commercial and managed EV charging environments.
Connector specification requires final technical confirmation before publication.
| Key Specifications | Power9 P9-DC30S |
|---|---|
| Charger Type | DC Fast Charger |
| Output Power | 20 kW / 30 kW selectable |
| Output Voltage | 200–1000 V DC |
| Maximum Output Current | 125 A |
| Input Voltage | 380–415 V AC |
| Input | Three-phase |
| Frequency | 50 / 60 Hz |
| Number of Guns | 1 |
| Cable | 5 m standard / 7 m optional |
| Efficiency | >93% at full load |
| Display | 7" TFT colour touchscreen |
| OCPP | 2.0.1 with 1.6J backward compatibility |
| Network | 4G LTE / Wi-Fi / LAN |
| Enclosure | IP54 |
| Impact Rating | IK10 |
| Mounting | Floor-standing |
| Dimensions | 560 × 260 × 1200 mm |
| Weight | 55 kg at 20 kW / 65 kg at 30 kW |
Select 20 kW or 30 kW Output
The P9-AC22D supports 20 kW and 30 kW operating configurations. This gives project planners another factor to consider when matching charging capacity with the vehicle, electrical infrastructure and operational charging window. Higher charger capacity should only be selected when the vehicle and site can make practical use of it.
Wide DC Output Range
The charger operates across a specified 200–1000 V DC output range with maximum output current of 125 A. Actual vehicle charging performance depends on the vehicle’s supported charging characteristics, battery state, temperature and charging curve.
7-Inch Touchscreen Interface
The integrated 7-inch colour touchscreen can display charging-session information including: Charging power, Voltage, Current, Vehicle state of charge where available, Session energy, Elapsed time, Charging cost, User identification, Fault information,Charger status.
Built for Managed Charging Environments
The DC charger includes functionality designed for more complex charging operations.
Dynamic Load Management
Helps support controlled electrical demand.
Charging Scheduling
Can support time-based charging strategies.
Fleet Management
The specification includes multi-site and multi-charger dashboard capability.
Flexible Authentication
RFID, NFC, QR and app-based methods are listed.
Charging Management
Supported billing configurations include energy, time and flat rate models. Commercial deployment and payment configuration should be confirmed according to the actual charging-management platform used.
Protection & Safety
- Specified protection includes:
- Over-voltage protection
- Under-voltage protection
- Over-current protection
- Over-temperature protection
- Short-circuit protection
- Integrated insulation monitoring
- Earth-leakage protection
- Type 2 surge protection
- Emergency-stop button
- The enclosure is rated IP54, while the cabinet has an IK10 impact rating.
Recommended Charging Environments
The current product documentation identifies applications including:
- Commercial Buildings
- Workplaces
- EV Fleets
- Highway / Public Charging Environments
Final product selection should still be based on vehicle compatibility, site conditions and project charging requirements.
Frequently Asked Questions
What is a dual-gun AC EV charger?
A dual-gun AC charger has two charging outputs within one charging system. The Power9 P9-AC22D provides two Type 2 charging guns with 11.5 kW output per gun and supports simultaneous operation, producing up to 23 kW combined system output.
Does the Power9 AC charger support OCPP?
According to the current product specification, the P9-DC30S supports OCPP 2.0.1 with backward compatibility for OCPP 1.6J. It also supports 4G LTE, Wi-Fi and LAN connectivity for compatible networked charging applications.
What is the maximum power of the Power9 DC fast charger?
The ES-DC30S offers selectable 20 kW or 30 kW DC charging output. Its maximum specified DC output current is 125 A, with a stated operating voltage range of 200–1000 V DC.
Does the Power9 DC charger support fleet management?
The specification includes dynamic load management, charging scheduling and multi-site, multi-charger dashboard functionality. The exact software deployment and commercial platform configuration should be confirmed for each project.
Can Power9 chargers be installed outdoors?
Both current charger specifications carry an IP54 enclosure rating. Final installation should still follow the manufacturer’s installation instructions, electrical requirements and site-specific environmental assessment.
Need Help Selecting Between AC and DC?
Tell us: What vehicles are being charged How many vehicles require charging How long they remain parked How much electrical power is available Where the charger will be installed.
